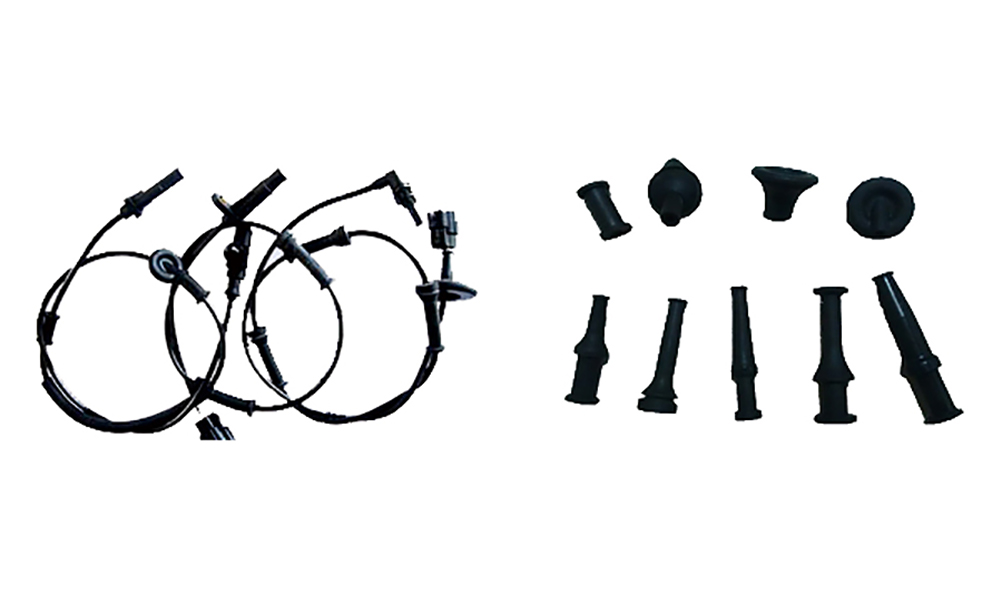

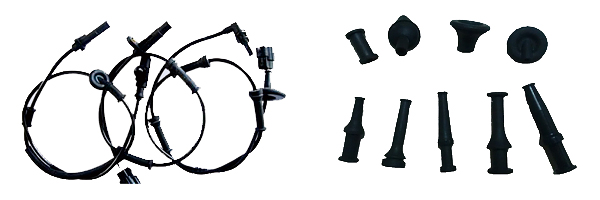

AGA300应用于汽车传感器线束的橡胶套Grommet组装。例如轮束传感器线束,ABS线束……机器为自动组装,当操作人员将线插入第一个型腔口后,机器将自动完成所有的橡胶套组装。机器的平台概念和膨胀原理保证了每个橡胶套在线束上的位置的准确和一致性。
![1557803349542587.jpg 产品应用.jpg](/static/upload/image/20190514/1557803349542587.jpg)
![1716008307687216.png 未标题-1-03.png](http://www.airstorm-tech.com/static/upload/image/20240518/1716008307687216.png)

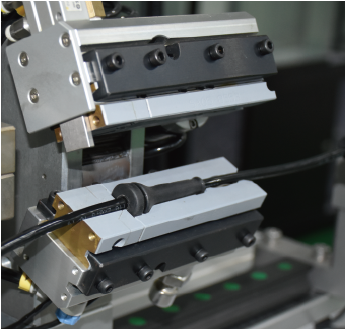

气动型腔有两部分组成,上模和下模。每个型腔都装有检测线和橡胶套有无的传感器,保证了在大量生产的情况下不会产生漏穿。
![1656566449912704.png 1656565960129925.png](/static/upload/image/20220630/1656566449912704.png)

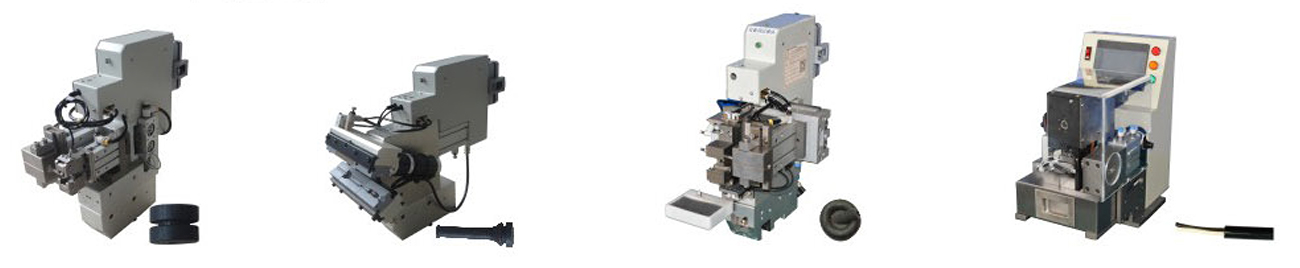

可选组件:
![1557802094117343.jpg 模块.jpg](/static/upload/image/20190514/1557802094117343.jpg)
线外径 | 4-10mm |
橡胶套最小间距 | 10mm |
加工时间 | 3-15s (Depend on grommet number and cable length) |
机器循环时间 | 5-20s (Depend on operator and product) |
电源 | 220V 50Hz |
气源 | 5-7 Bar
|
设备尺寸 | L1810*W720*H2100 mm |
净重 | 420KG |
Important Notice:ASTI recommends that samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine
|
